• Bright front bumper
• Bright rear bumper
• Front air dam
• Bright grille
• Body color upper fascia
• Halogen headlamps
• Clearance lamps
• Box & rear fender lamps
• Black 6" x 9" pwr heated mirrors
• Tinted glass
• Variable speed intermittent windshield wipers
• Cargo lamp
• Floor tunnel & dash liner insulation
• Body & hood insulation

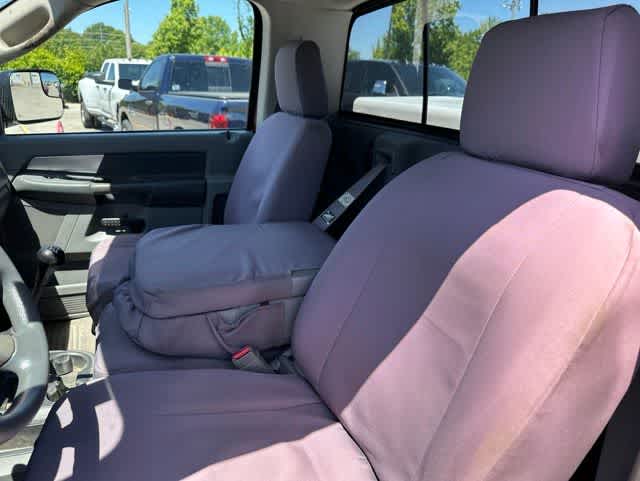

• Cloth 40/20/40 split bench seat
• Stain & odor resistant anti-static seat fabric
• Mini floor console
• Carpeted floor covering
• Front floor mats

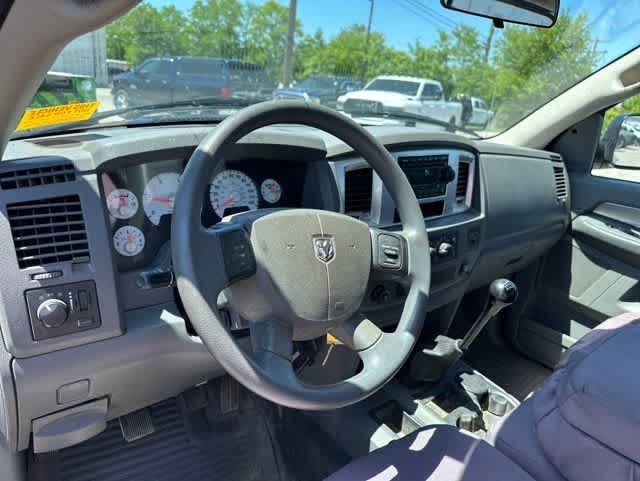

• 4-spoke steering wheel
• Tilt steering column
• Sentry Key theft deterrent system

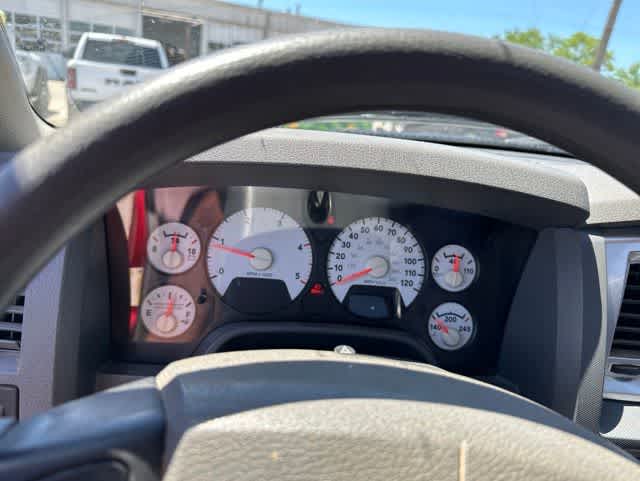

• Instrument cluster-inc: 120 MPH primary speedometer, tachometer
• Pwr windows w/driver one-touch down
• Sliding rear window
• Pwr locks
• Remote keyless entry
• Speed control

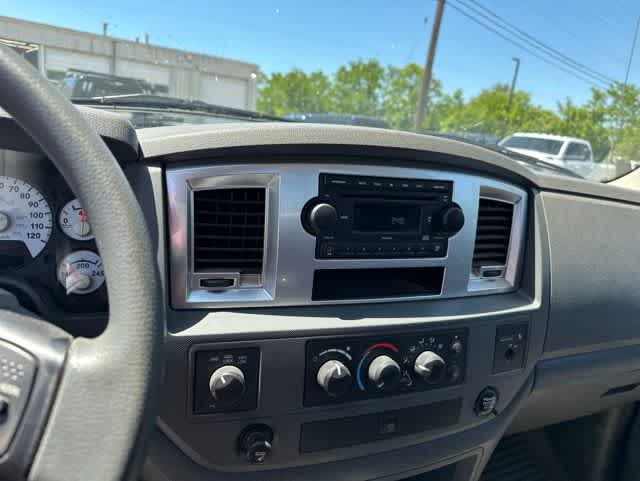

• AM/FM stereo w/CD player
• (4) speakers
• Sirius satellite radio w/1-year service *N/A in AK or HI*
• Fixed long mast antenna
• Air conditioning
• 12V pwr outlet
• Cigar lighter
• Color-keyed instrument panel bezel
• Overhead console w/trip computer
• Passenger assist handle
• Passenger side visor vanity mirror
• Behind seat storage bin

• Pwr 4-wheel anti-lock disc brakes
• "Next Generation" front airbags
• Passenger airbag on/off switch
• Child safety rear door locks
• Front height adjustable shoulder belts
• Dual note horn

Additional Packages

• 2Eg

• AHC
• DSA
• GPG-A

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 136
• Maximum Alternator Watts: 1904
• Cooling System
• Total Cooling System Capacity (qts): 32.7
• Total Cooling System Capacity (qts): 18.7
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Rear (lbs): 9350
• Curb Weight - Front (lbs): 4305
• Curb Weight - Front (lbs): 3557
• Curb Weight - Rear (lbs): 2879
• Curb Weight - Rear (lbs): 2904
• Gross Vehicle Weight Rating Cap (lbs): 12200
• Gross Vehicle Weight Rating Cap (lbs): 11500
• Gross Combined Wt Rating (lbs): 17000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 11650
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 10400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1748
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1560
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 11650
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 10400
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2913
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2600
• Suspension
• Suspension Type - Front: Coil
• Suspension Type - Rear: Leaf
• Axle Type - Front: Hypoid
• Axle Type - Rear: Full-floating
• Axle Capacity - Front (lbs): 5200
• Axle Capacity - Rear (lbs): 9350
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.9 x 1.39
• Rear Brake Rotor Diam x Thickness (in): 13.9 x 1.18
• Tires
• Front Tire Order Code: TPY
• Rear Tire Order Code: TPY
• Spare Tire Order Code: TBB
• Front Tire Size: LT235/80R17E
• Rear Tire Size: LT235/80R17E
• Spare Tire Size: LT235/80R17E
• Front Tire Capacity (lbs): 3085
• Rear Tire Capacity (lbs): 3085
• Spare Tire Capacity (lbs): 3085
• Revolutions/Mile @ 45 mph - Front: 649
• Revolutions/Mile @ 45 mph - Rear: 649
• Revolutions/Mile @ 45 mph - Spare: 649
• Wheels
• Front Wheel Size (in): 17 x 6.0
• Rear Wheel Size (in): 17 x 6.0
• Spare Wheel Size (in): 17 x 6.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: 13.4
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 44.2
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 35
• Fuel Tank Location: Inboard Frame Rails
• Exterior Dimensions
• Wheelbase (in): 140.5
• Length, Overall w/o rear bumper (in): 229.7
• Width, Max w/o mirrors (in): 96.0
• Height, Overall (in): 78.7
• Overhang, Front (in): 39.4
• Overhang, Rear w/o bumper (in): 49.9
• Front Bumper to Back of Cab (in): 122.9
• Cab to Axle (in): 56.8
• Cab to End of Frame (in): 100.8
• Ground to Top of Load Floor (in): 37.2
• Ground to Top of Frame (in): 33.9
• Frame Width, Rear (in): 41.8
• Ground Clearance, Front (in): 8.2
• Ground Clearance, Rear (in): 7.6
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.3
• Cargo Box Width @ Top, Rear (in): 66.4
• Cargo Box Width @ Floor (in): 65.1
• Cargo Box Width @ Wheelhousings (in): 51.0
• Cargo Box (Area) Height (in): 20.2
• Tailgate Width (in): 60.6
• Cargo Volume (ft³): 74.9
• Ext'd Cab Cargo Volume (ft³): 16.9
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 40.2
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 67.0
• Front Hip Room (in): 65.1
• Summary

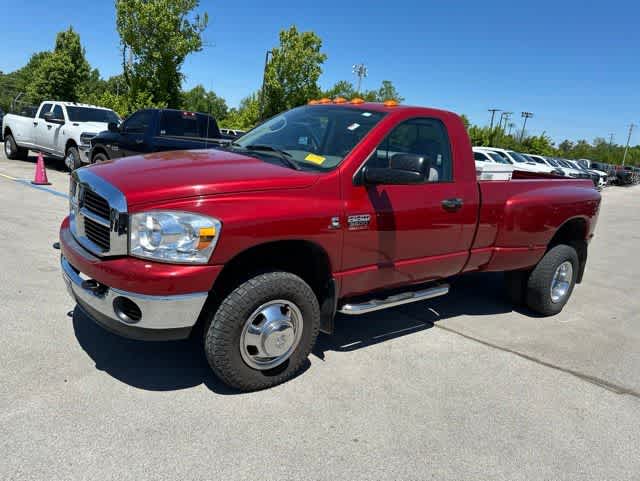

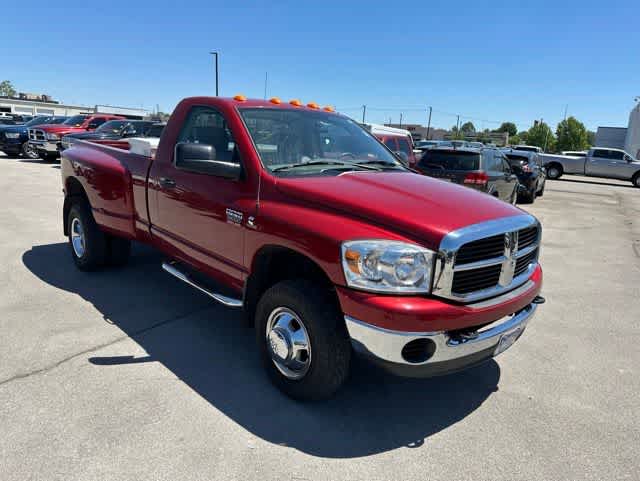

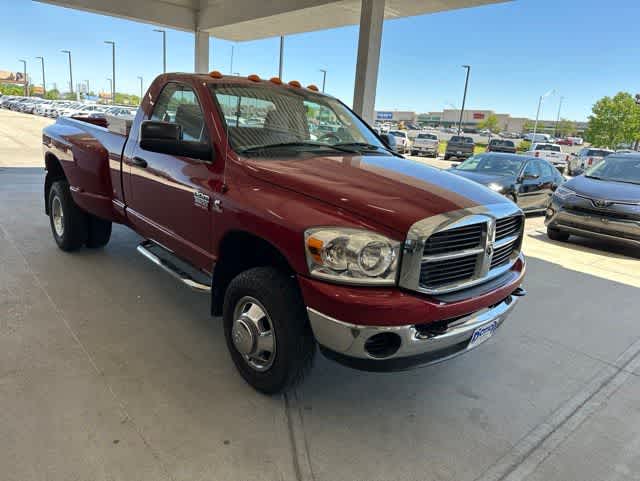

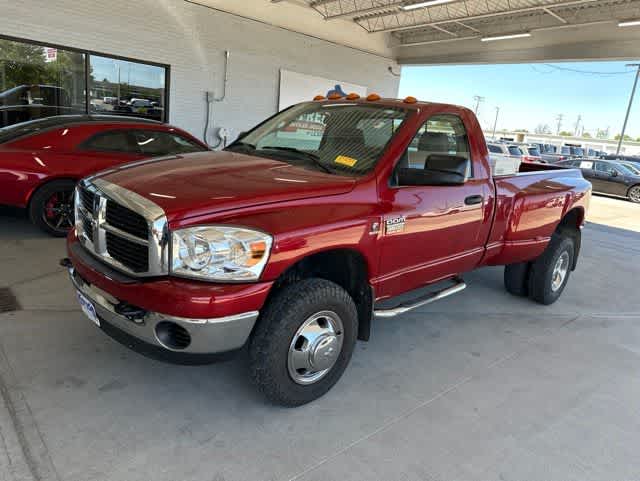

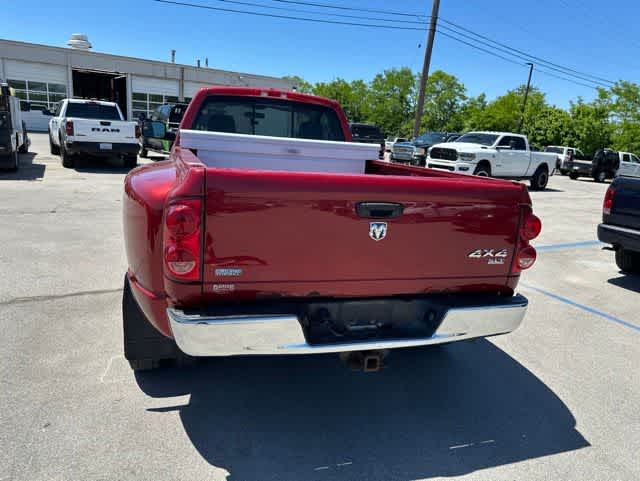

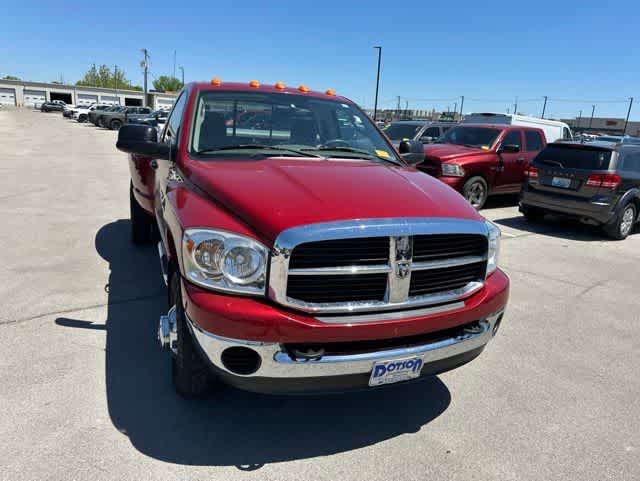

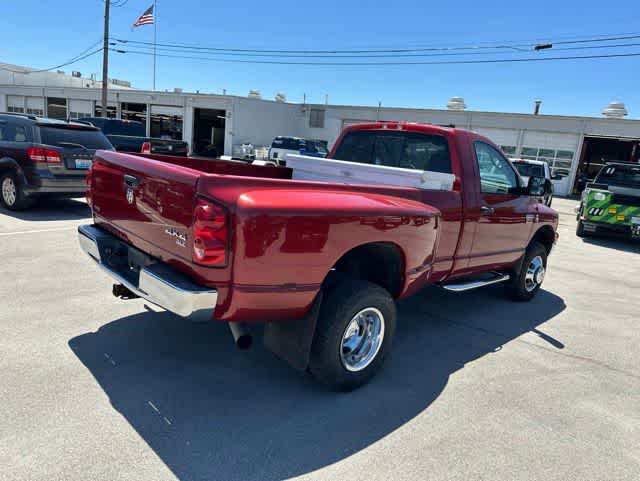

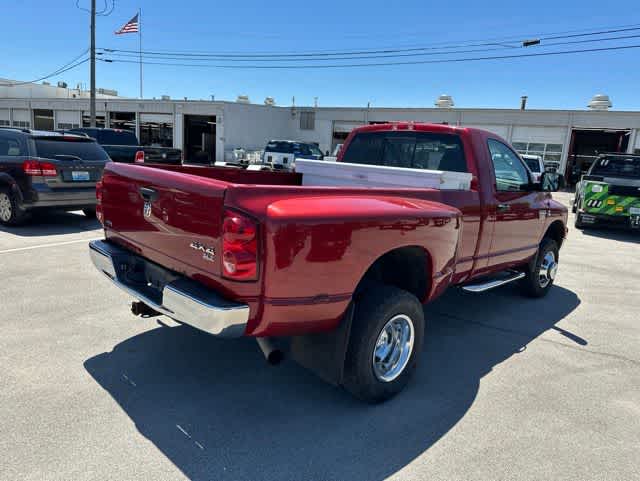

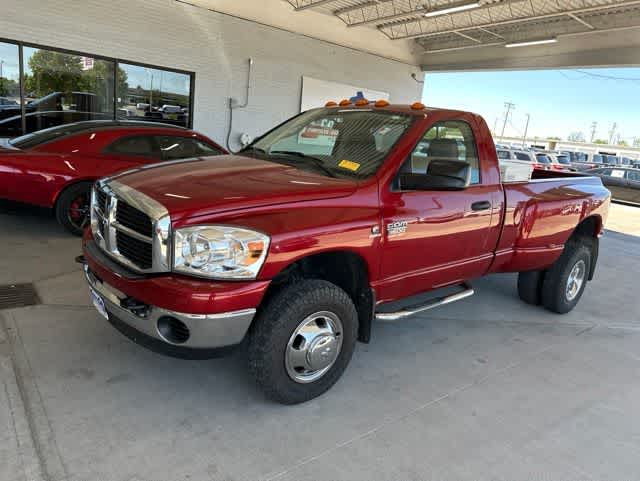

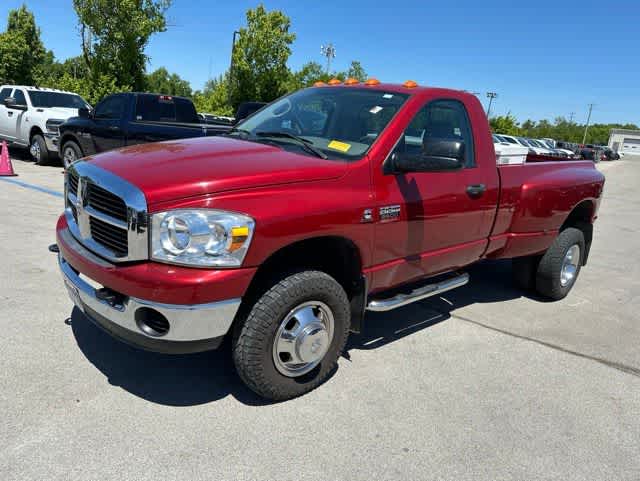

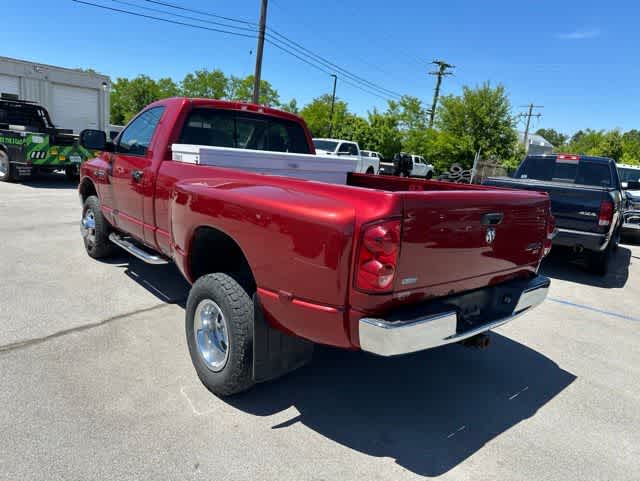

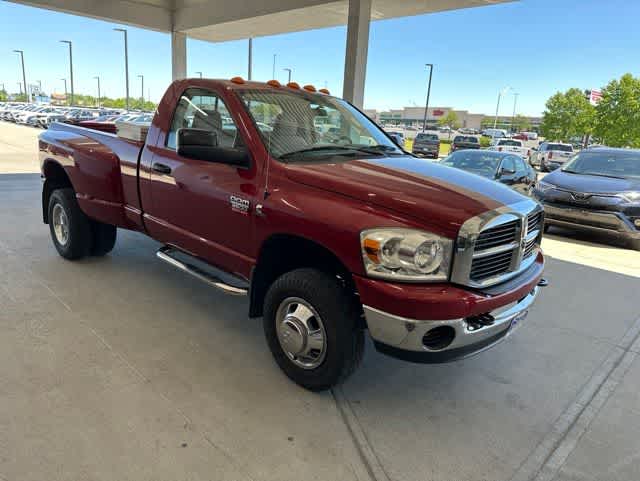

• Vehicle Name: Dodge Ram 3500
• Body Style: Reg Cab 8' Box
• Body Code: 140.5" WB
