• Bumper, front painted Black with step-pad (Deleted when (ZR7) Chrome Appearance Package is ordered.)
• Grille, Black composite with single rectangular halogen headlamps (Not available with (ZR7) Chrome Appearance Package.)
• Flasher, heavy duty light emitting diode (LED), formerly known as SEO (8H9)
• Mirrors, outside delete (Not available with (5Q7) Upfitter option Blank Sail Panel Delete when ordered with (YF2) Ambulance Package.)
• Wipers, front intermittent wet-arm with pulse washers
• License plate kit, front

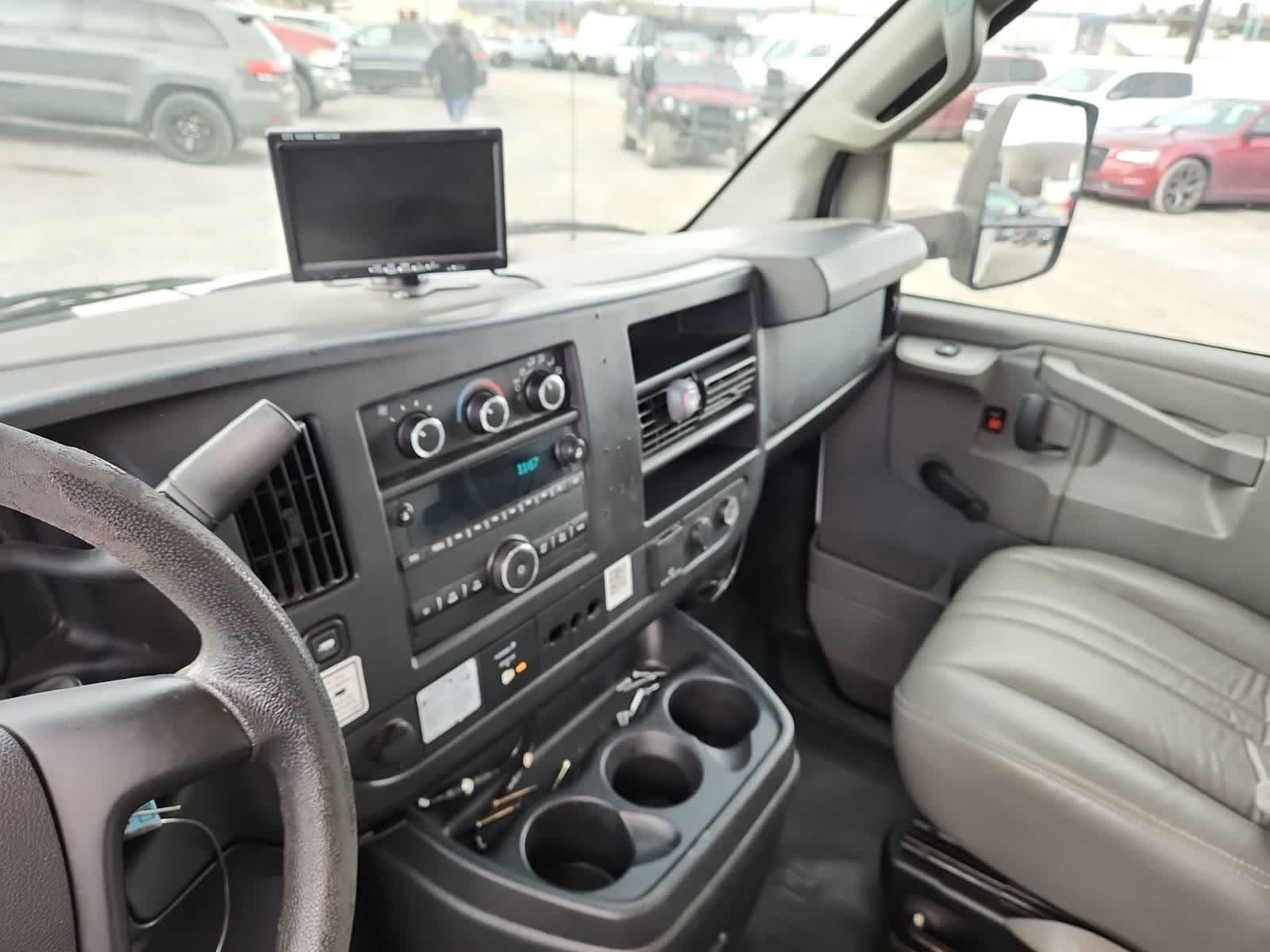

• Audio system, AM/FM stereo with MP3 player seek-and-scan, digital clock, TheftLock, random select, auxiliary jack and 2 front door speakers

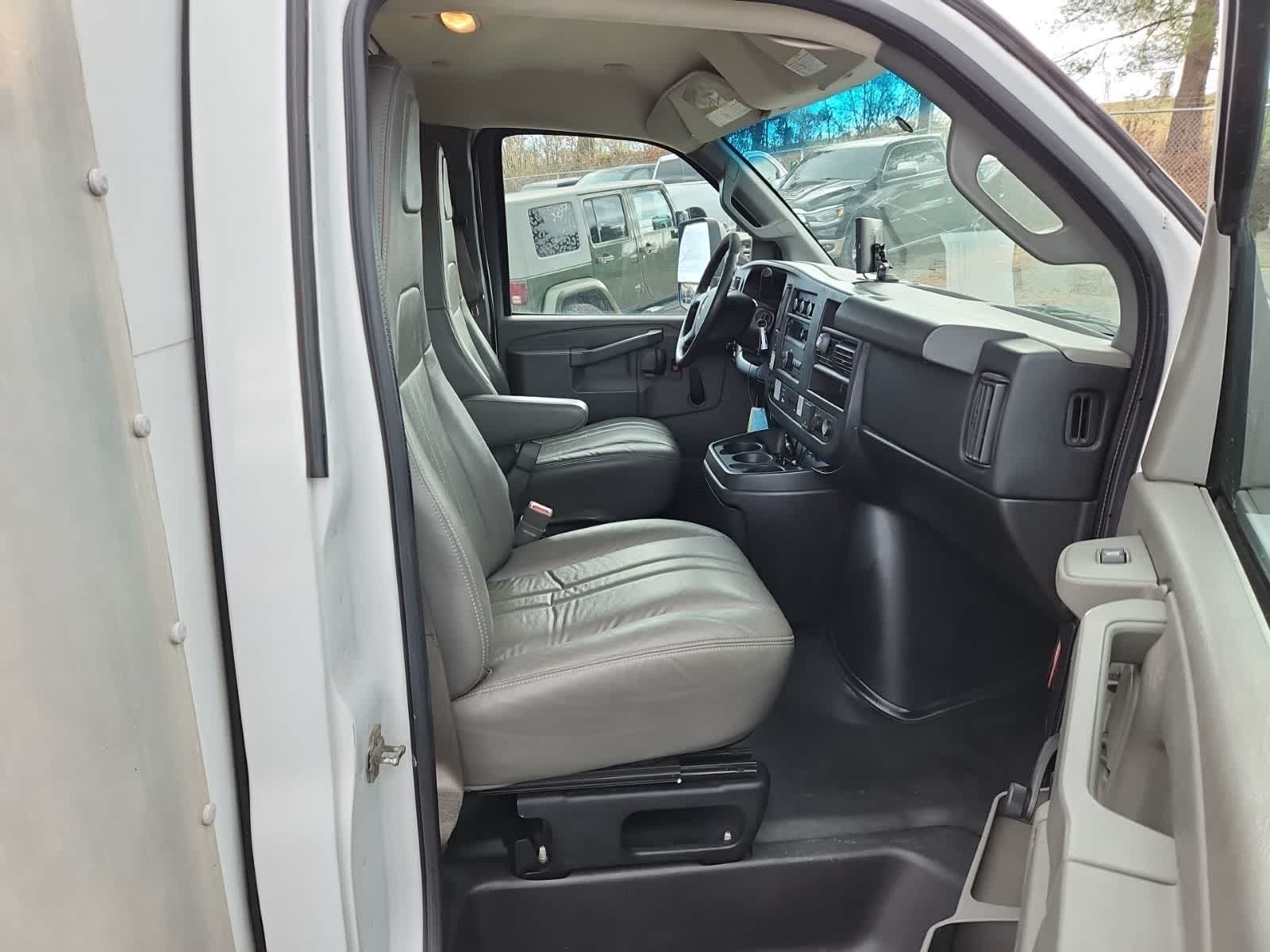

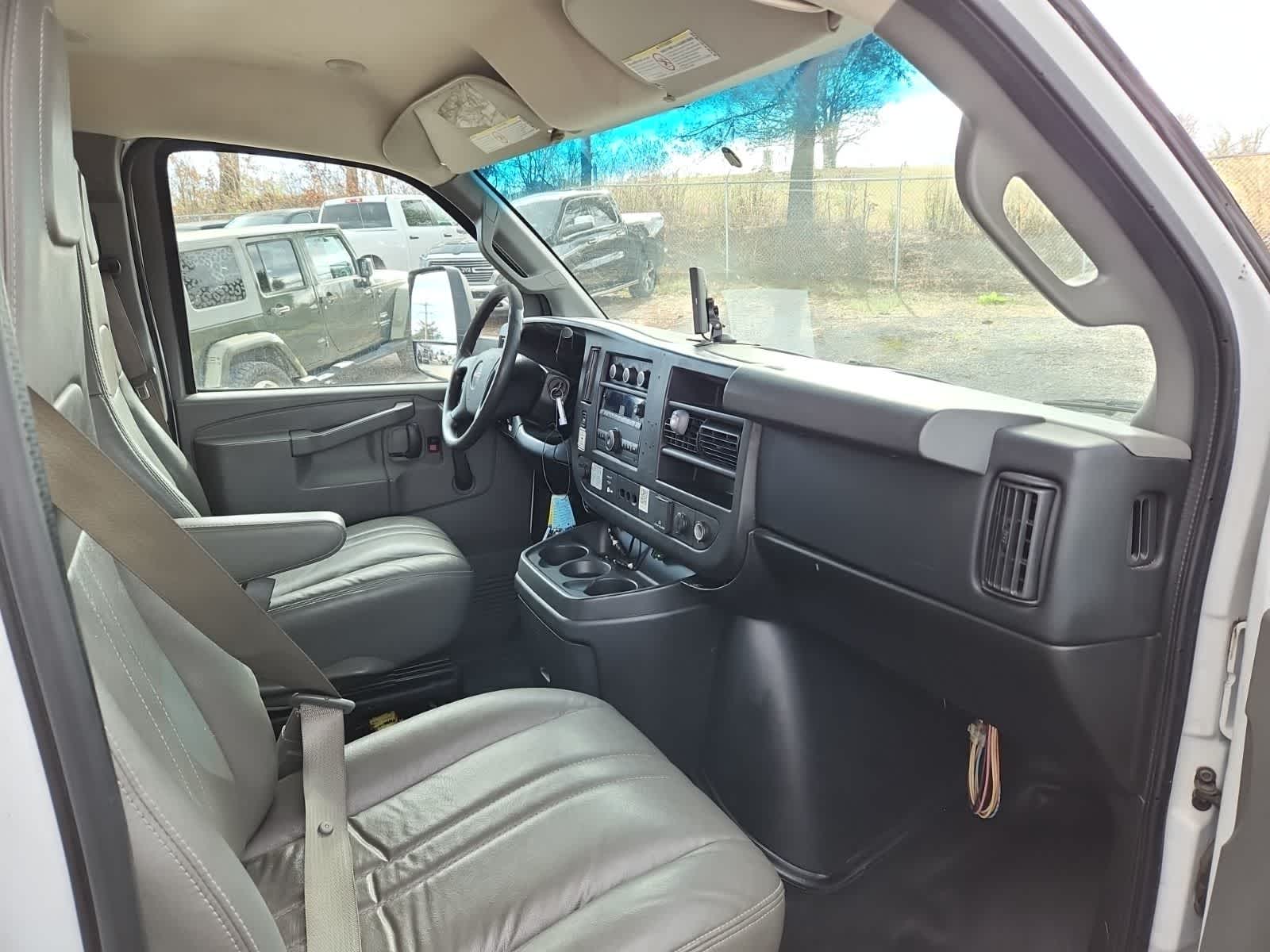

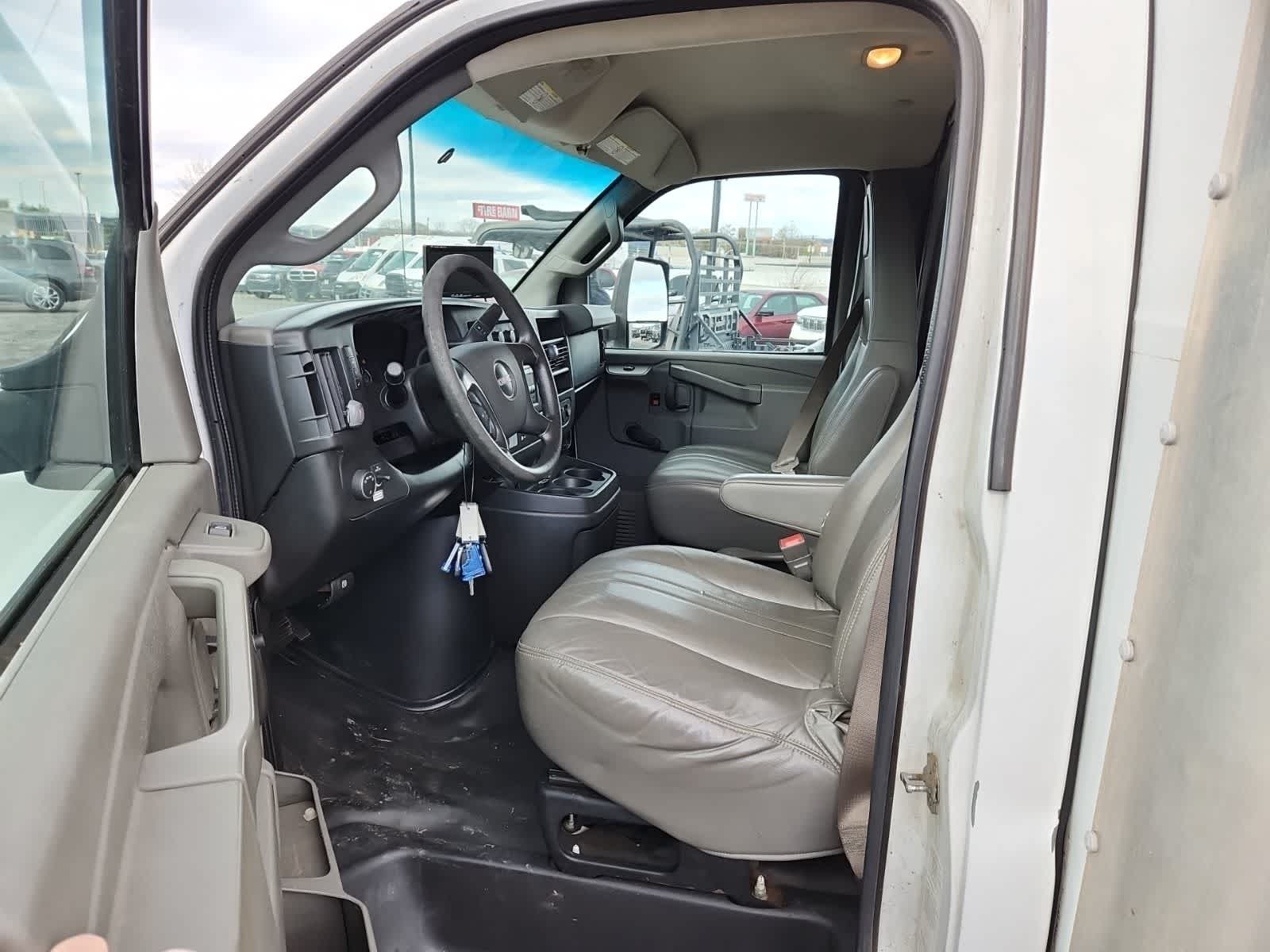

• Seating arrangement, driver and front passenger highback bucket includes head restraints and vinyl or cloth trim (Not available with (AJ3) driver-side only frontal air bag.)
• Air conditioning, single-zone manual

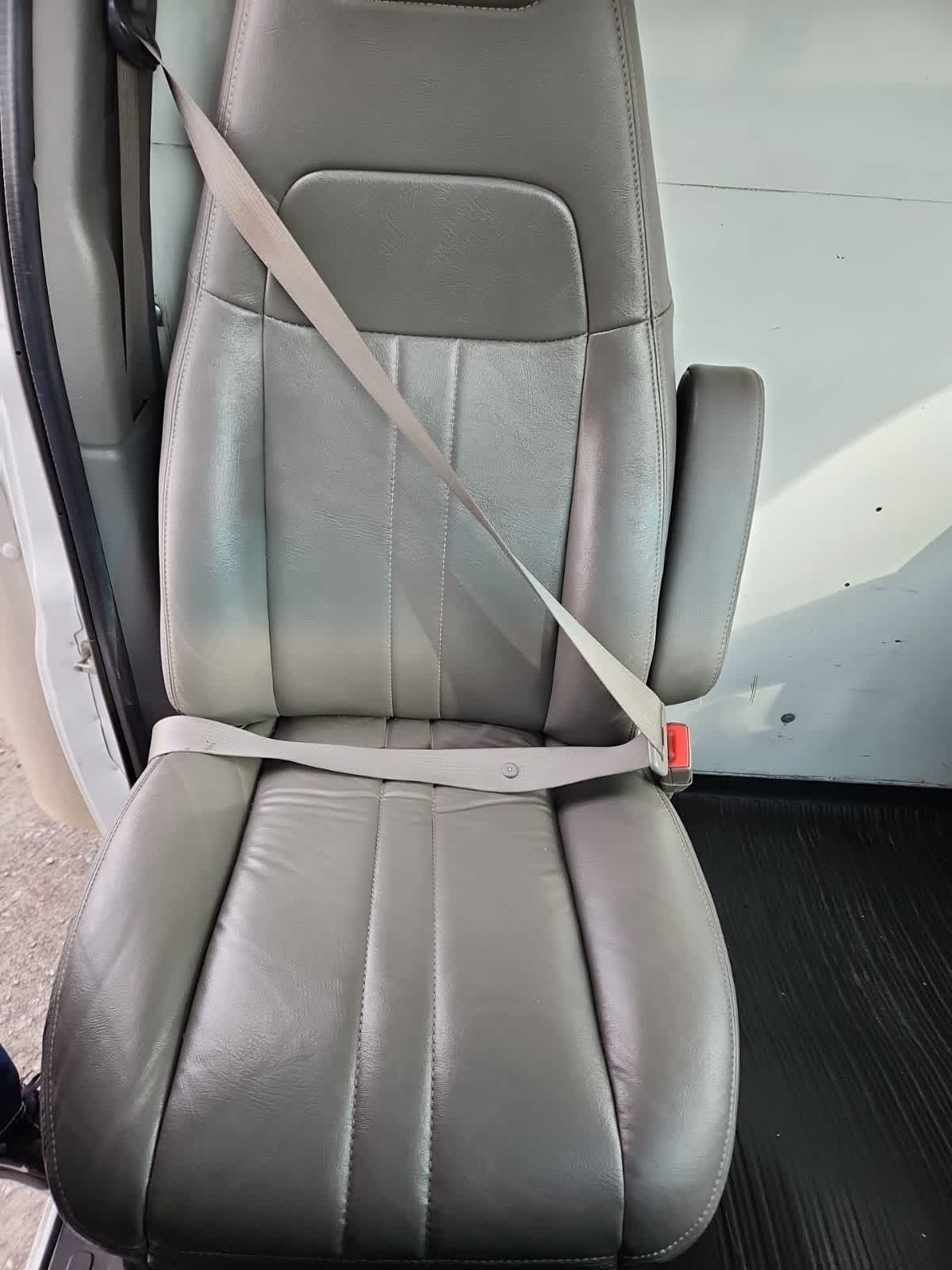

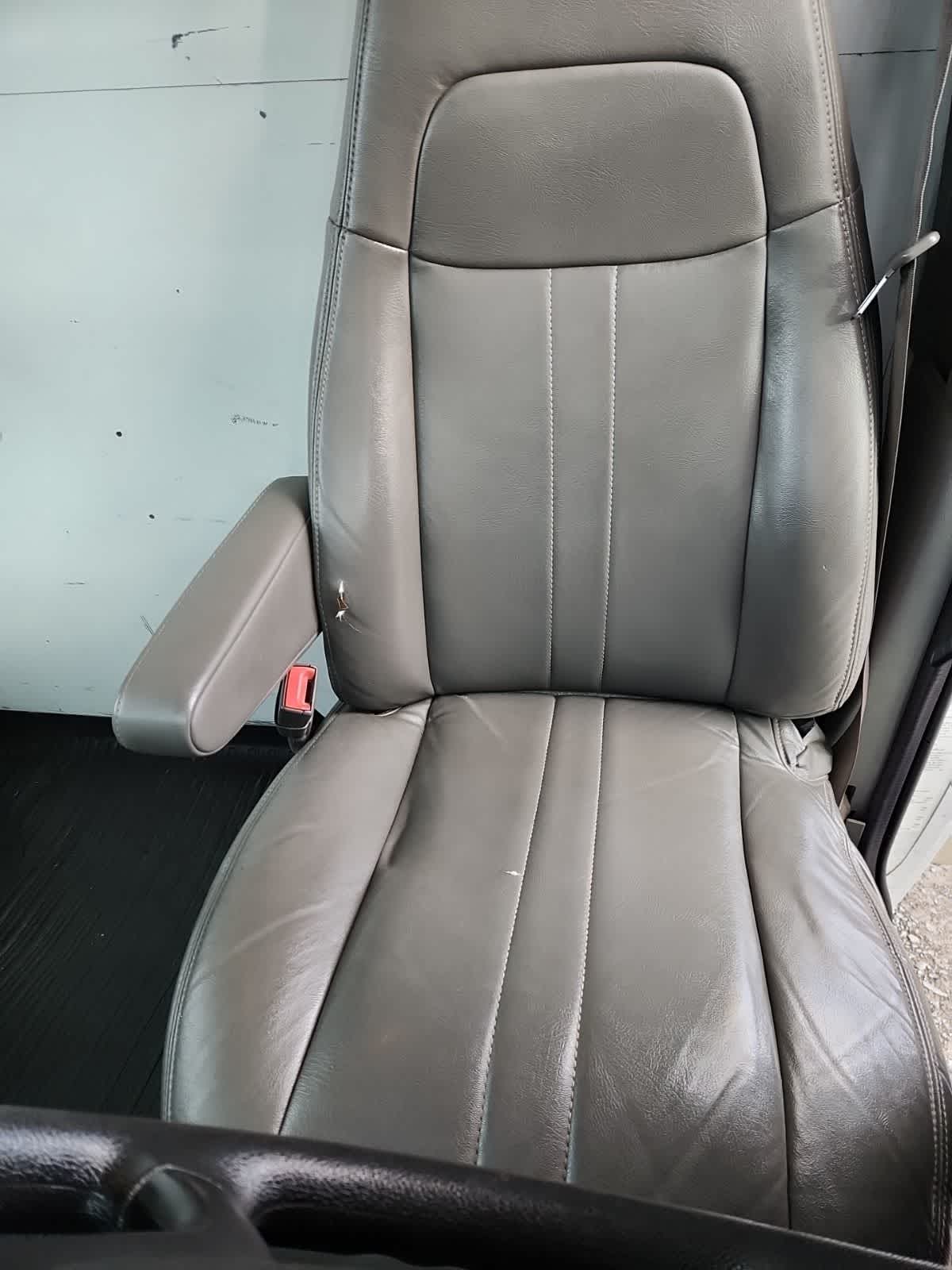

• Seats, front bucket with vinyl trim and head restraints includes inboard armrests (Requires (**W) trim. Not available with SEO (ZP0) delete driver and passenger seats. Includes only driver high-back bucket seat with vinyl trim when ordered with (ZX1) driver-only high-back bucket seating arrangement.)
• Power outlet, 120-volt

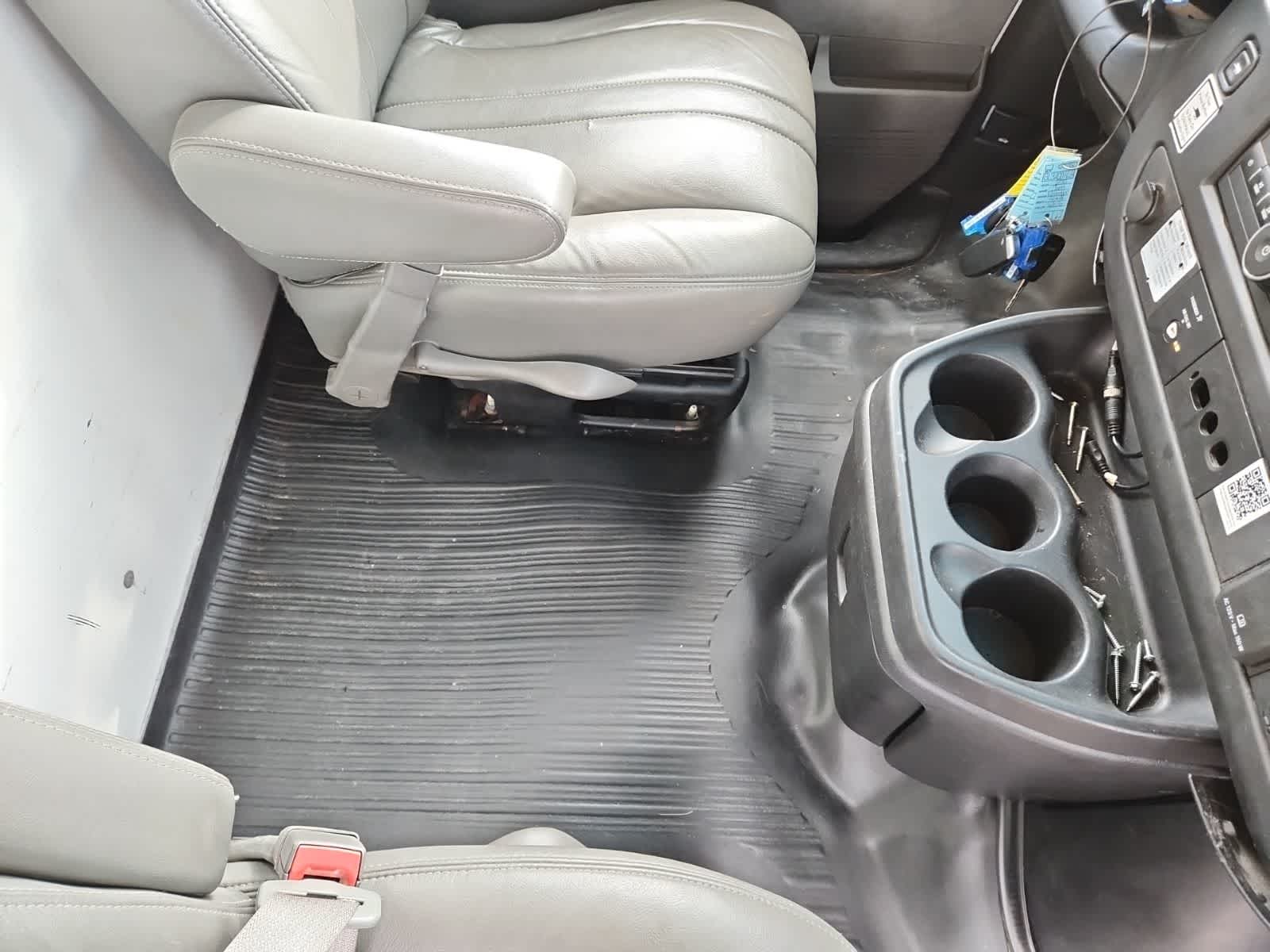

• Floor covering, Black rubberized-vinyl front
• Warning tones, headlamp on and key-in-ignition
• Oil life monitor
• Theft-deterrent system, vehicle, PASS-Key III
• Heater and defogger with front and side window defoggers
• Headliner, cloth, over driver and passenger
• Visors, driver and front passenger, cloth, padded
• Assist handles, driver and right-front passenger
• Lighting, interior with dome light and door handle-activated switches

• Daytime Running Lamps
• Air bags, frontal, driver and right-front passenger (Included with (ZX2) driver and front passenger high-back bucket seats. Not available with (ZX1) driver only high-back bucket seat. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bag deactivation switch, frontal, passenger-side (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)

1WT PREFERRED EQUIPMENT GROUP

• Includes Standard Equipment

AUDIO SYSTEM, AM/FM STEREO WITH MP3 PLAYER AND USB PORT

• includes seek-and-scan
• digital clock
• TheftLock
• random select
• auxiliary jack and 2 front door speakers

ONSTAR GUIDANCE PLAN FOR 6 MONTHS

• including Automatic Crash Response
• Stolen Vehicle Assistance
• Roadside Assistance
• Turn-by-Turn Navigation
• Vehicle Diagnostics and more (trial excludes Hands-Free Calling)

ONSTAR WITH 4G LTE

• and built-in Wi-Fi hotspot to connect to the internet at 4G LTE speeds
• includes 3GB or 3 months OnStar Data Trial (whichever comes first)

WHEEL FINISH, PAINTED WHITE.

• White-painted wheels in lieu of standard Gray-painted wheels.

TIRE VALVE STEMS, LONG, BRASS, FOR INSIDE DUAL REAR WHEELS

• (Brass metal 3-3/8" long valve stems on the inner wheels of dual rear wheel axles for easy air inflation.)

TIRE VALVE STEMS, BRASS IN LIEU OF STANDARD

• (Also included on spare when furnished)

GOVERNOR, ELECTRONIC SPEED SENSOR SET TO 75 MPH

• Provides electronic software to limit maximum road speed to 75-MPH. Cruise control limited to 70 MPH.

DOOR LOCKS, POWER

• with lock-out protection

CONSOLE, ENGINE COVER

• with swing-out storage bin

BODY, SOFT-MOUNT DONUT AND BOLT

• (for mounting Upfit body to chassis)

GVWR, 12,300 LBS. (5579 KG)

• (STD)

VISORS, DRIVER AND FRONT PASSENGER, VINYL

• in lieu of standard cloth

MIRRORS, OUTSIDE WIDE-STANCE SAIL PANEL MOUNTED (VELVAC).

• Provides Velvac convex combination RH and LH outside rear view mirrors that are sail panel mounted with arms that provide a wide stance. Mirrors can be utilized with bodies that are up to 96 inch width. Mirrors provide a 63.3 sq. inch flat glass positioned over a 30.1 sq. inch convex glass within a common head. Mirrors are shipped loose in vehicle

ENGINE, VORTEC 6.0L V8

• (342 hp [255.0 kW] @ 5400 rpm
• 373 lb-ft of torque [503.6 N-m] @ 4400 rpm) (STD)

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY

• electronically controlled with overdrive and tow/haul mode and internal transmission oil cooler (STD)

TIRE VALVE STEM CAPS, AIR THRU

• (Air through valve caps on the tire air valves)

SEATING ARRANGEMENT, DRIVER AND FRONT PASSENGER HIGHBACK BUCKET

• includes head restraints and vinyl or cloth trim (STD)

AIR CONDITIONING, SINGLE-ZONE MANUAL

• (STD)

FLEET FREE MAINTENANCE CREDIT.

• This option code provides a credit in lieu of the free oil changes
• tire rotations and inspections (2 maximum)
• during the first 24 months and 24
• 000 miles period for this ordered vehicle. The invoice will detail the applicable credit. The customer will be responsible for all oil change
• tire rotations and inspections costs for this vehicle.

BODY, STANDARD

• (STD)

• AU3
• L96
• MYD
• U0H
• VV4
• ZQ3

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Cooling System
• Total Cooling System Capacity (qts): 14.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4600
• Gross Axle Wt Rating - Rear (lbs): 8600
• Curb Weight - Front (lbs): 3146
• Curb Weight - Rear (lbs): 1883
• Gross Vehicle Weight Rating Cap (lbs): 12300
• Suspension
• Suspension Type - Front: Indep Coil Spring
• Suspension Type - Rear: Multi-leaf
• Spring Capacity - Front (lbs): 4600
• Spring Capacity - Rear (lbs): 8600
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4600
• Axle Capacity - Rear (lbs): 8600
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35.0
• Shock Absorber Diameter - Rear (mm): 35.0
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Order Code: XHF
• Rear Tire Order Code: YHF
• Front Tire Size: LT225/75R16E
• Rear Tire Size: LT225/75R16E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): - TBD -
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 33.0
• Fuel Tank Location: Mid-frame
• Exterior Dimensions
• Wheelbase (in): 177.00
• Length, Overall w/o rear bumper (in): 284.80
• Width, Max w/o mirrors (in): 79.10
• Height, Overall (in): 82.90
• Overhang, Front (in): 39.70
• Front Bumper to Back of Cab (in): 98.70
• Cab to Axle (in): 118.00
• Cab to End of Frame (in): 186.50
• Ground to Top of Frame (in): 23.31
• Frame Width, Rear (in): 34.80
• Ground Clearance, Front (in): 7.60
• Ground Clearance, Rear (in): 7.00
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 40.20
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 68.80
• Front Hip Room (in): 65.50
• Summary

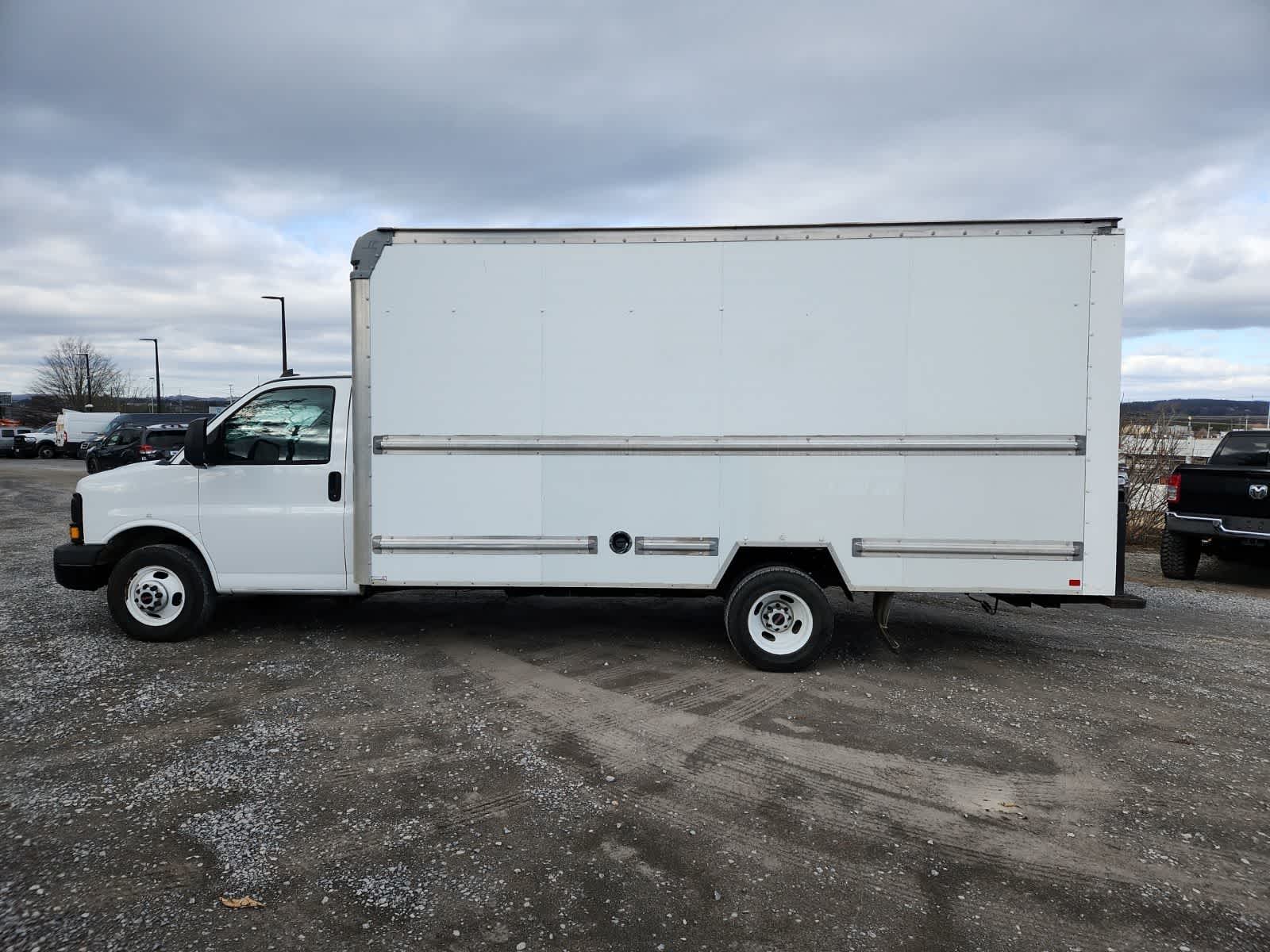

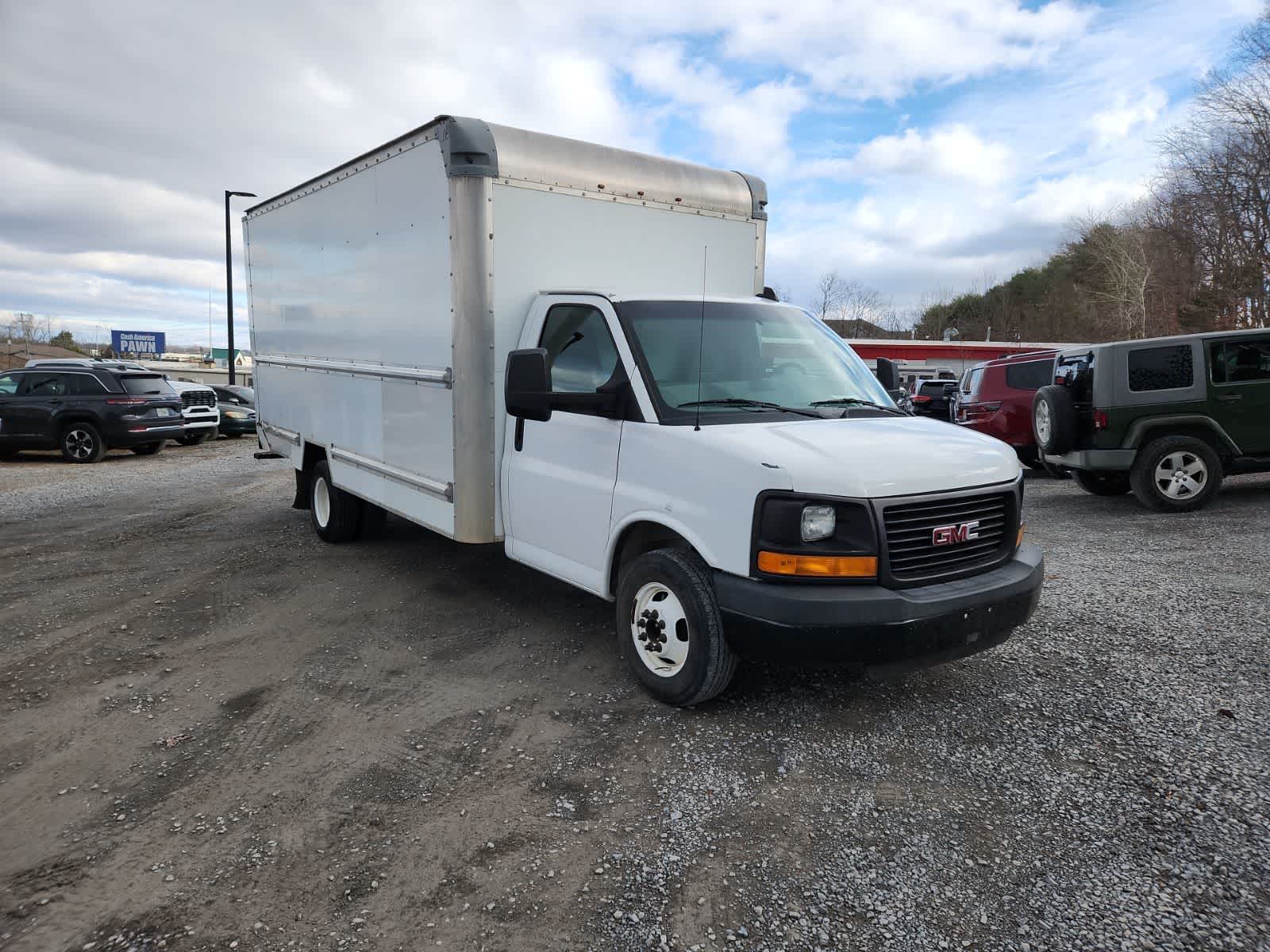

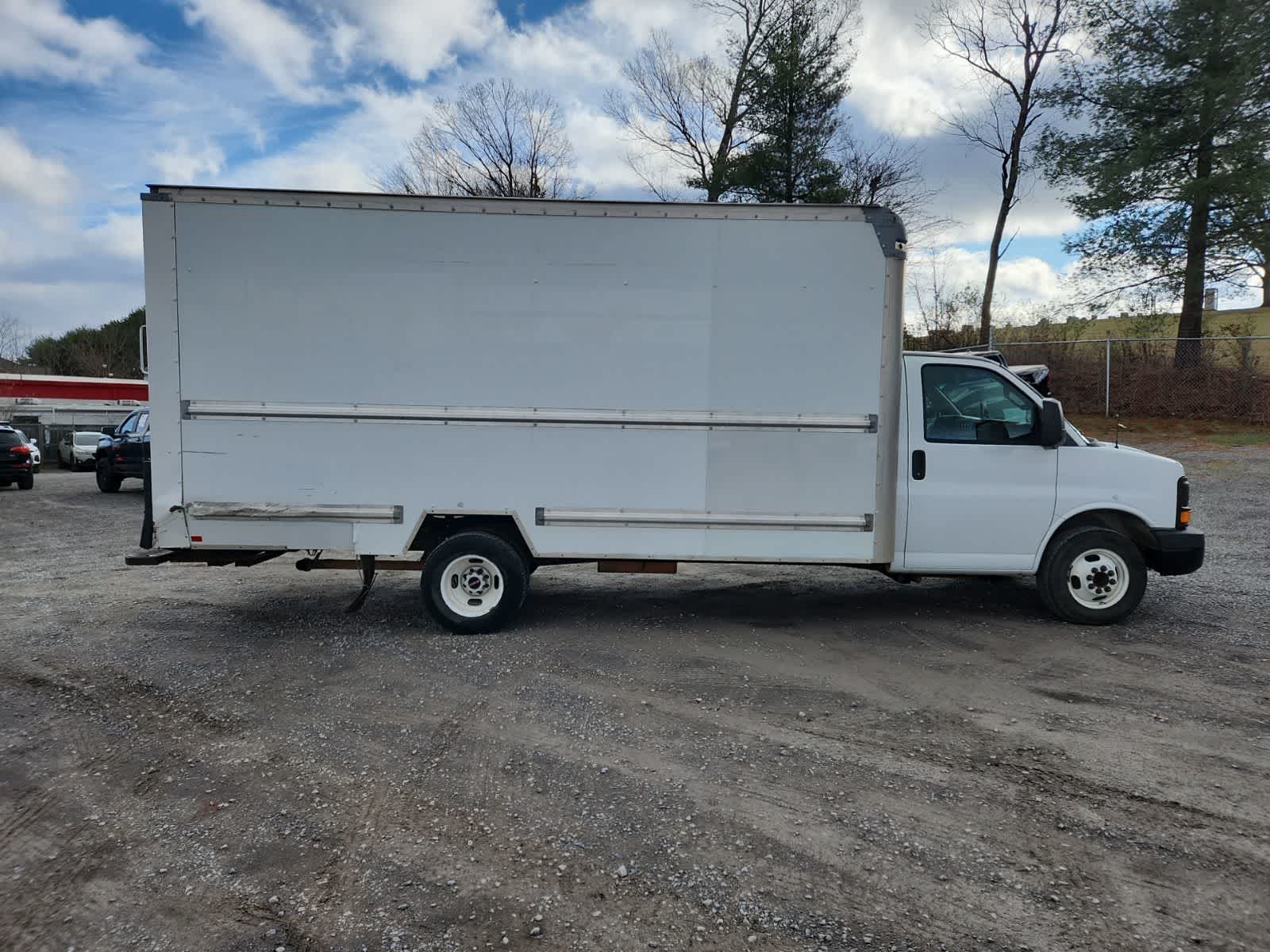

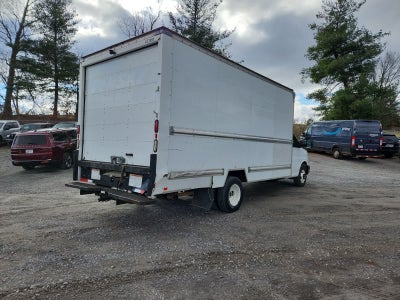

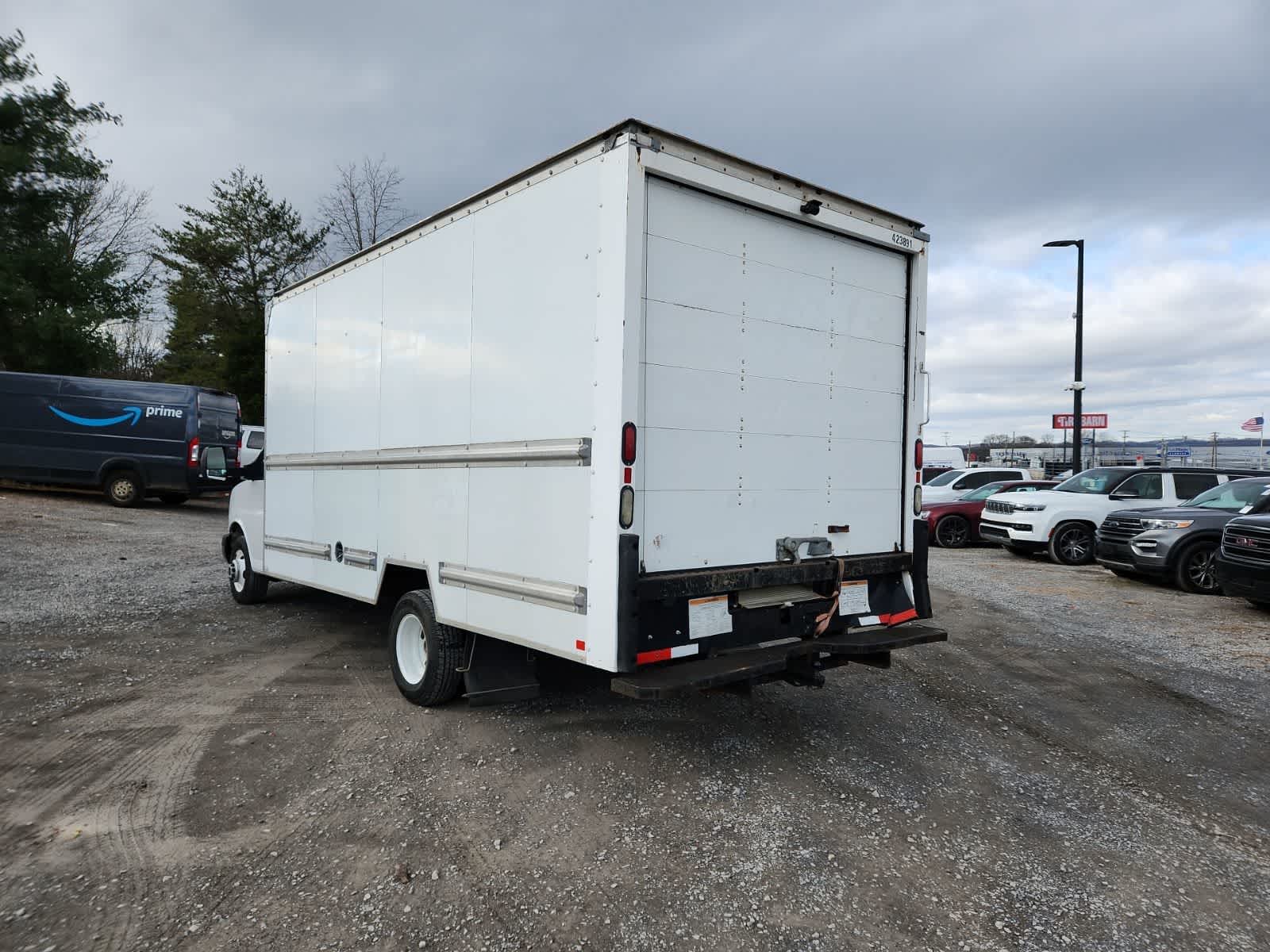

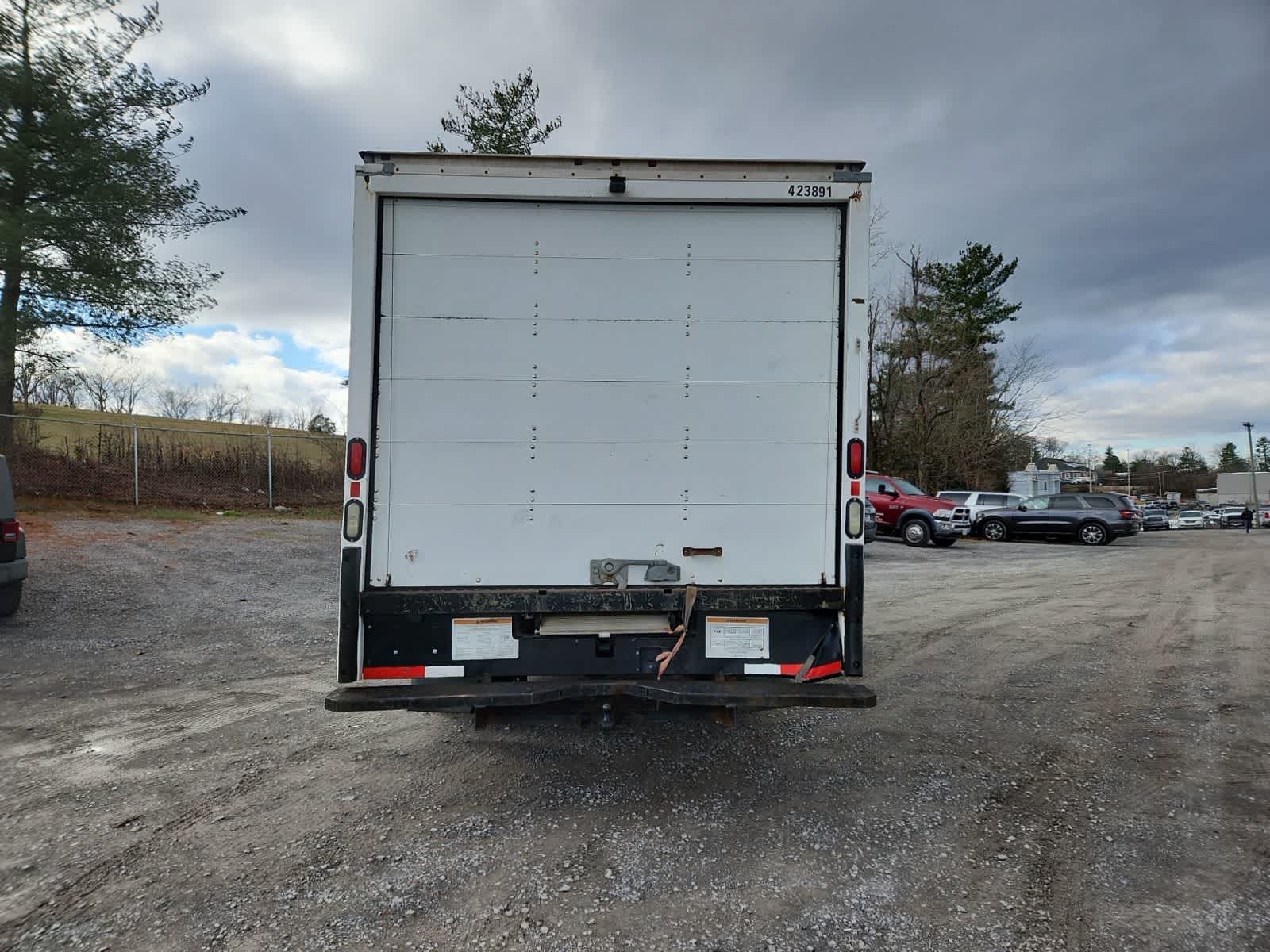

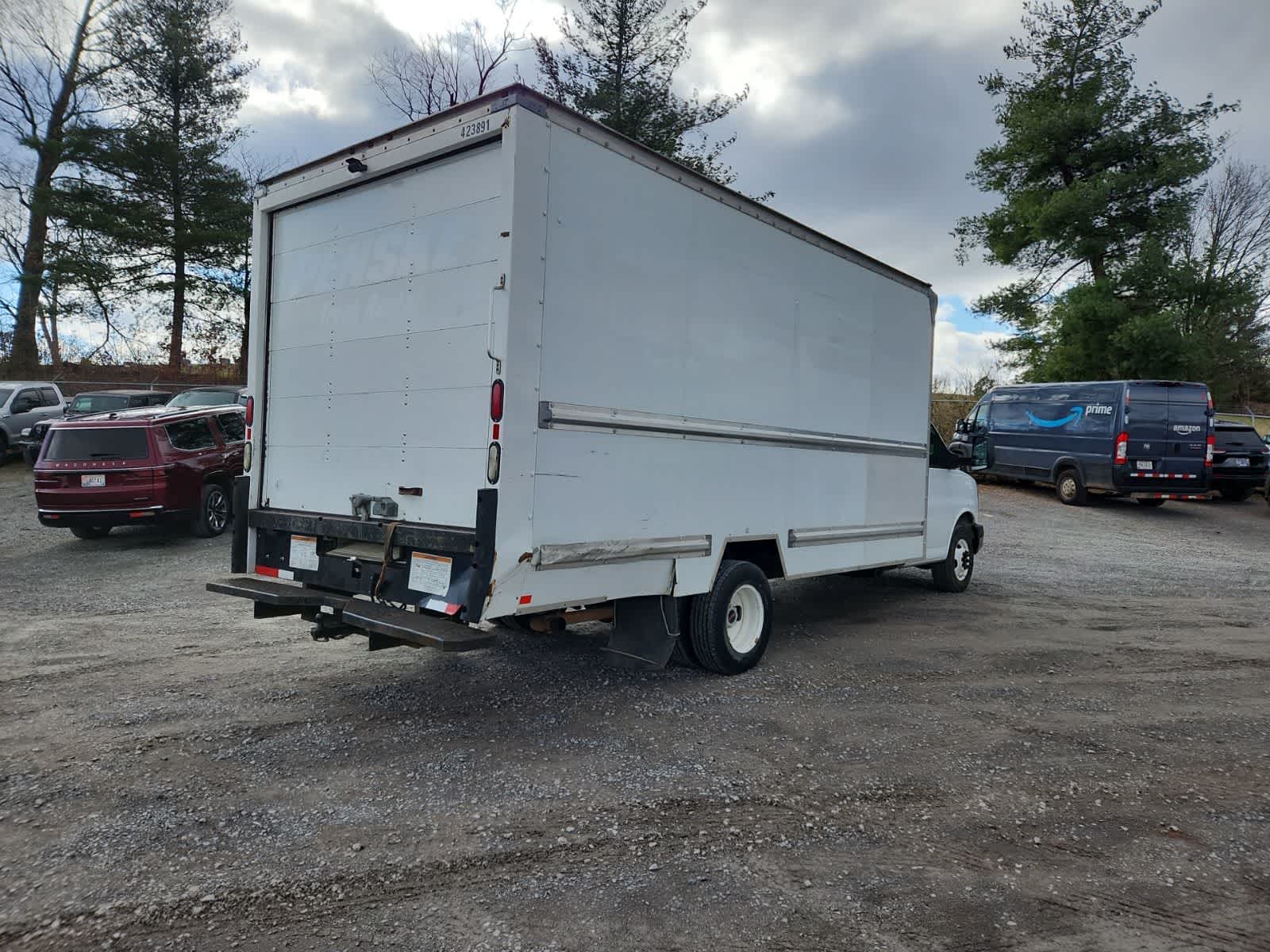

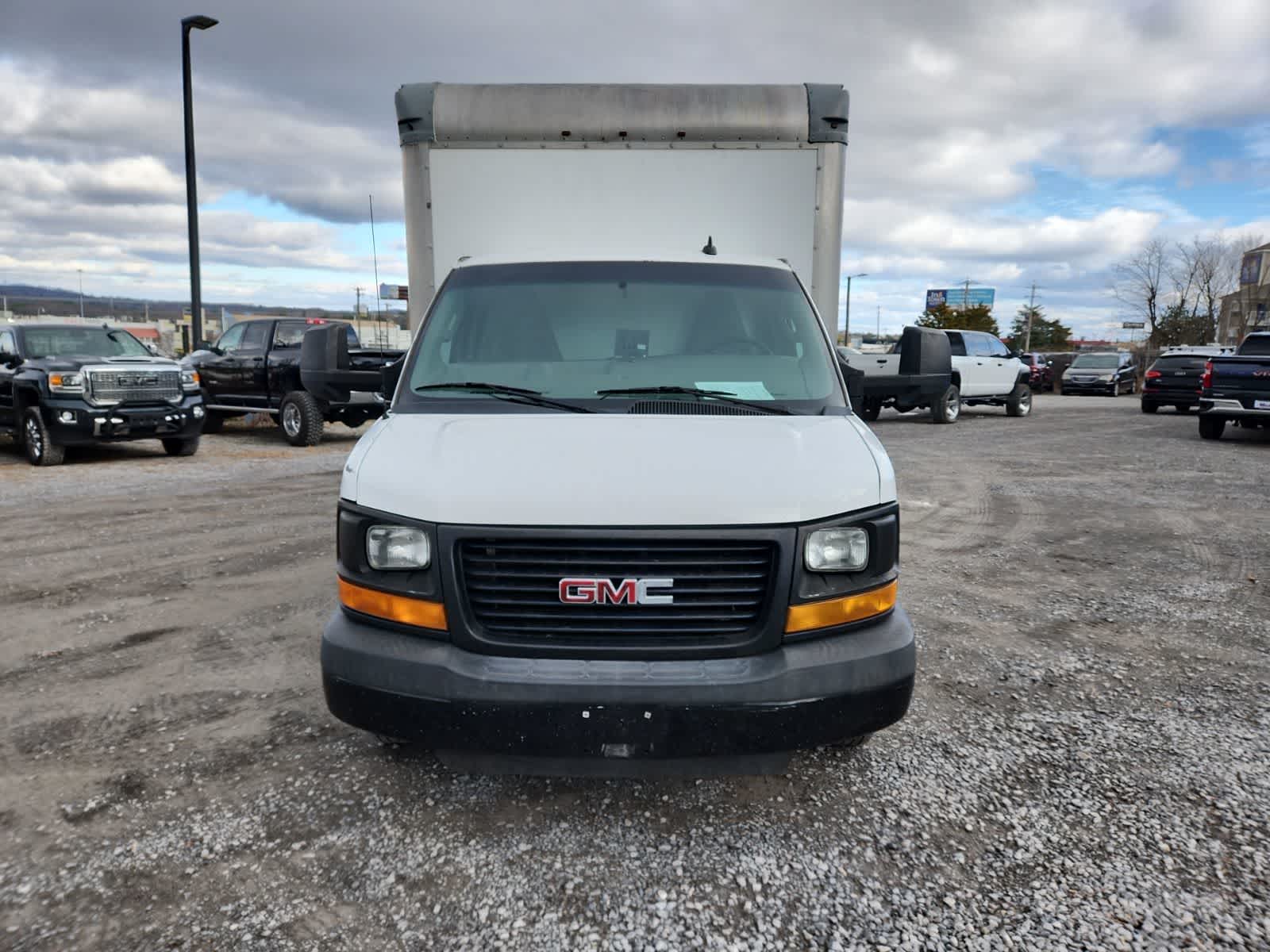

• Vehicle Name: GMC Savana Commercial Cutaway
• Body Style: 177.0" WB
• Body Code: ZW9
